Specifications

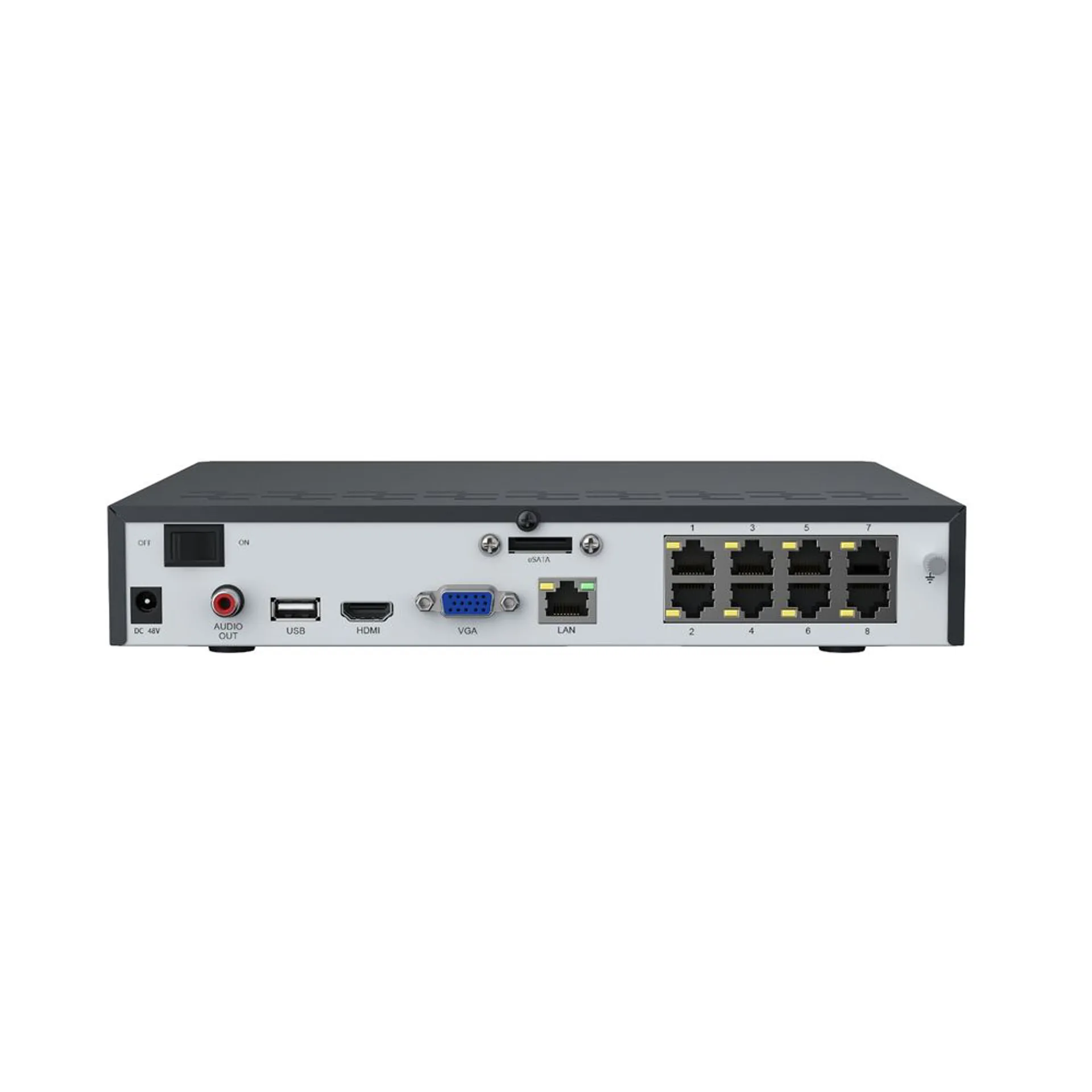

External Interfaces
Video Out
1 HDMI, 1 VGA
Audio Port
1 audio out channel, RCA
USB Ports
2 x USB 2.0
Ethernet Ports
8 x RJ-45, 10/100 Mbps self-adaptive PoE Ethernet interface (for IP cameras)
1 x RJ-45, 10/100/1000 Mbps self-adaptive (for LAN/WAN)
Video & Audio

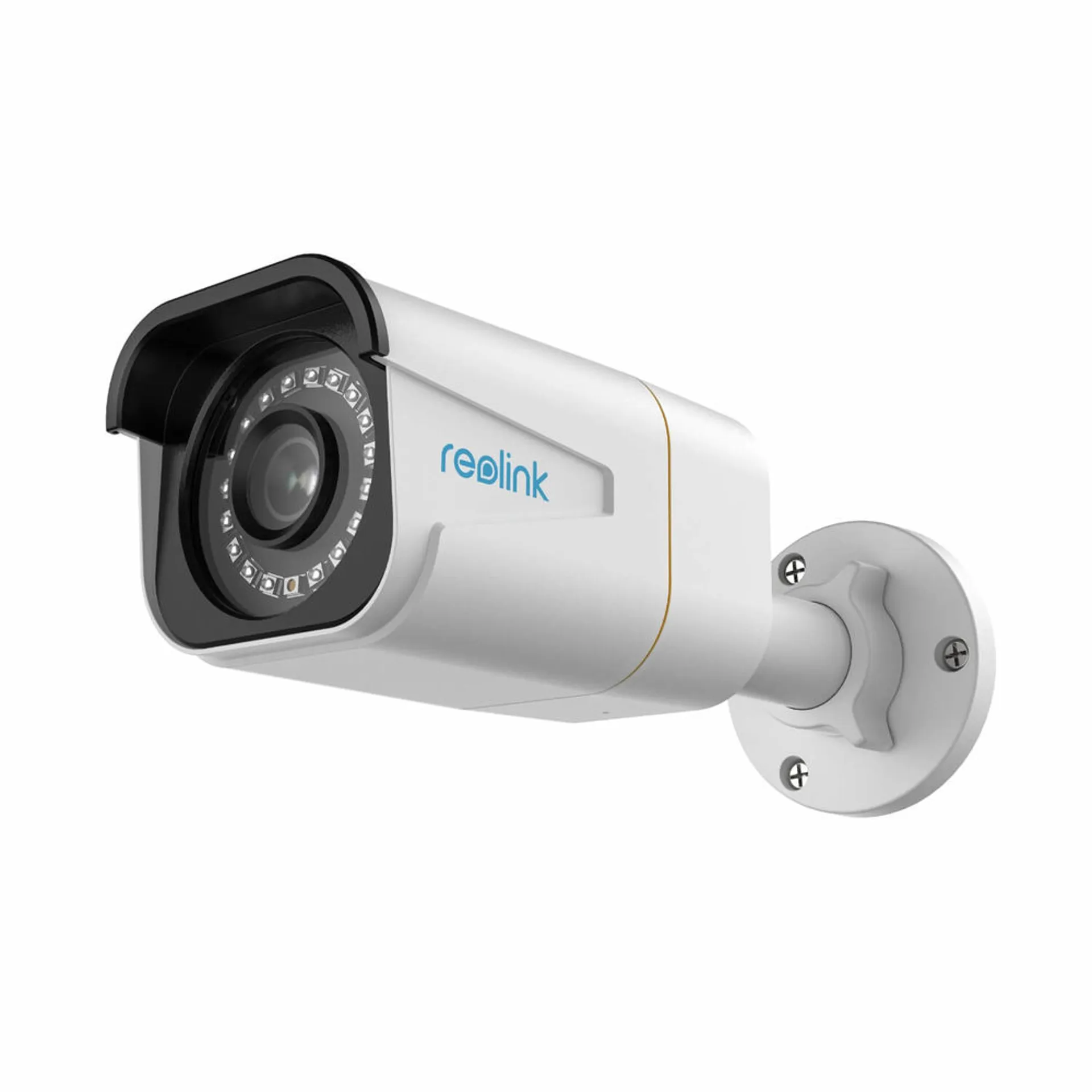

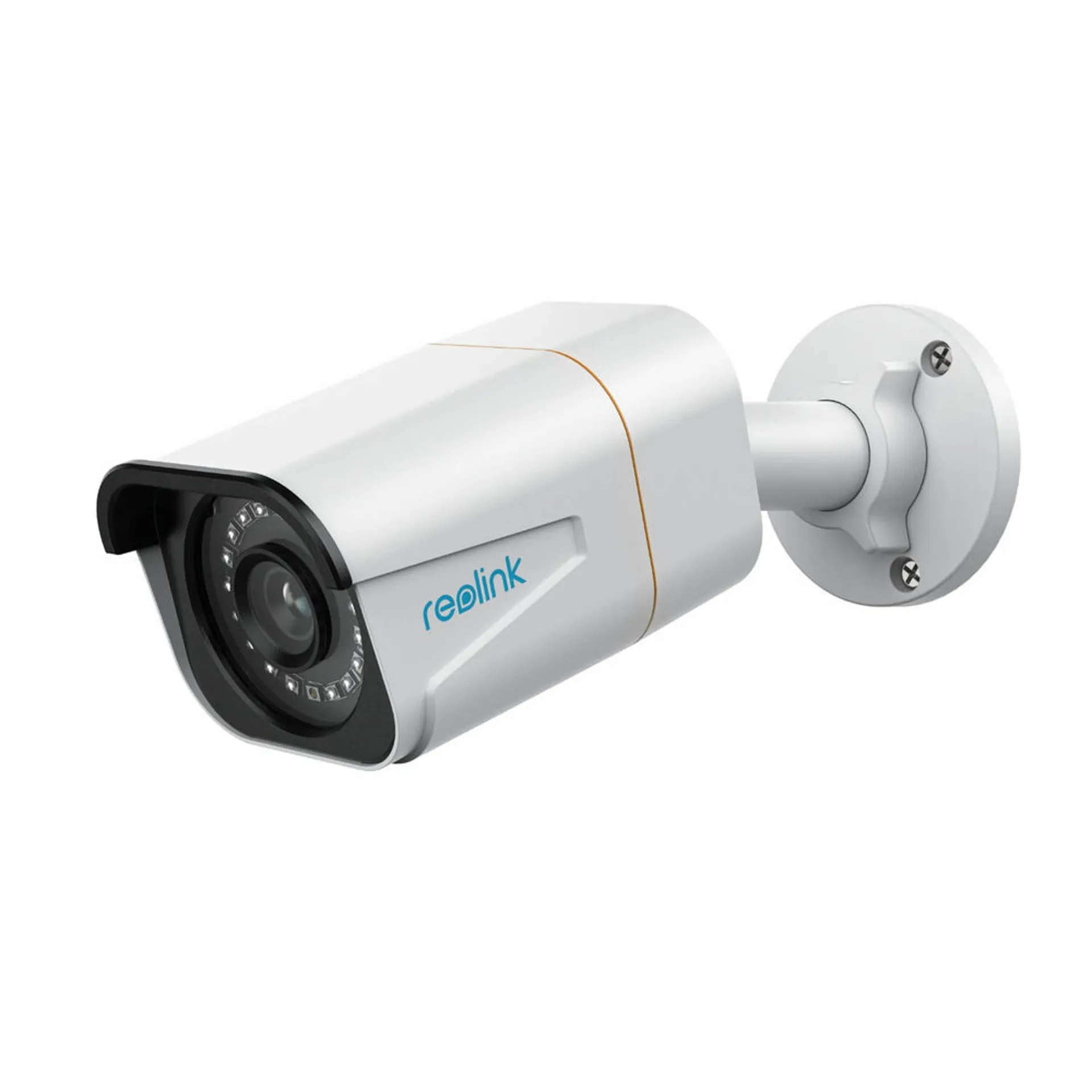

Image Sensor1/2.49" CMOS Sensor
Video Resolution Default4096x2512(10Megapixels)@15FPS
Lens f=4mm F=2.0, with IR Cut
Video Format H .265
Video Input PoE IP Camera x 8
Video OutputHDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
Field of ViewHorizontal: 91° Vertical: 50°
Day & Night IR-cut filter with auto-switching
Infrared Night Vision 30 Meters(18pcs/14mil/850nm)
Audio Record Audio
Cameras with built-in MIC
Software Features
Frame Rate Main Stream: 2fps - 15fps(default: 15fps)
Sub Stream: 4fps - 15fps(default: 10fps)
Code Rate Main Stream: 3072Kbps -8192Kbps(default: 8192Kbps)
Sub Stream: 128Kbps - 1228Kbps(default: 1024Kbps)
Smart Alarm Motion Detection/Person Detection/Vehicle Detection
RecordingVideo Compression H.265, H.264
Live View/Playback 12MP/8MP/5MP/4MP/3MP/1080P/720P
Synchronous Playback 1-4 channels (Supports only 1-channel playback if you view it in 8MP or higher resolution)
Recording Modes Person/Vehicle/Pet Detection, Motion-triggered Detection; 24/7 Recording
Storage

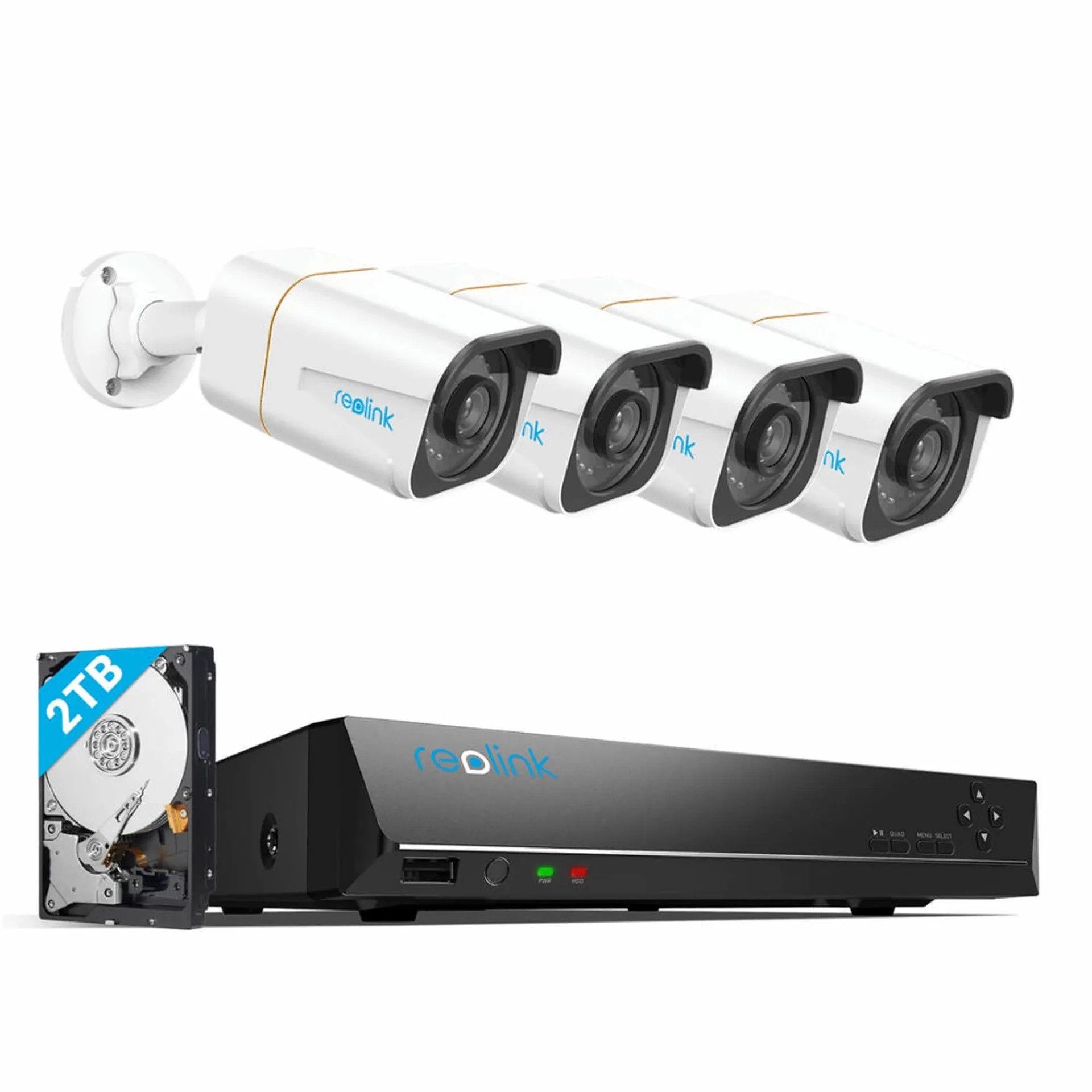

Internal HDD 1 SATA interface (2TB HDD included)
External HDD 1 eSATA interface for HDD
Max. Capacity 12TB (up to 6TB capacity for each HDD)
PoEMax. Power per Port 25W
Supported Standard IEEE 802.3 af/at
NetworkNetwork Protocols HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP
Browsers Supported Edge, Firefox, Chrome, Safari

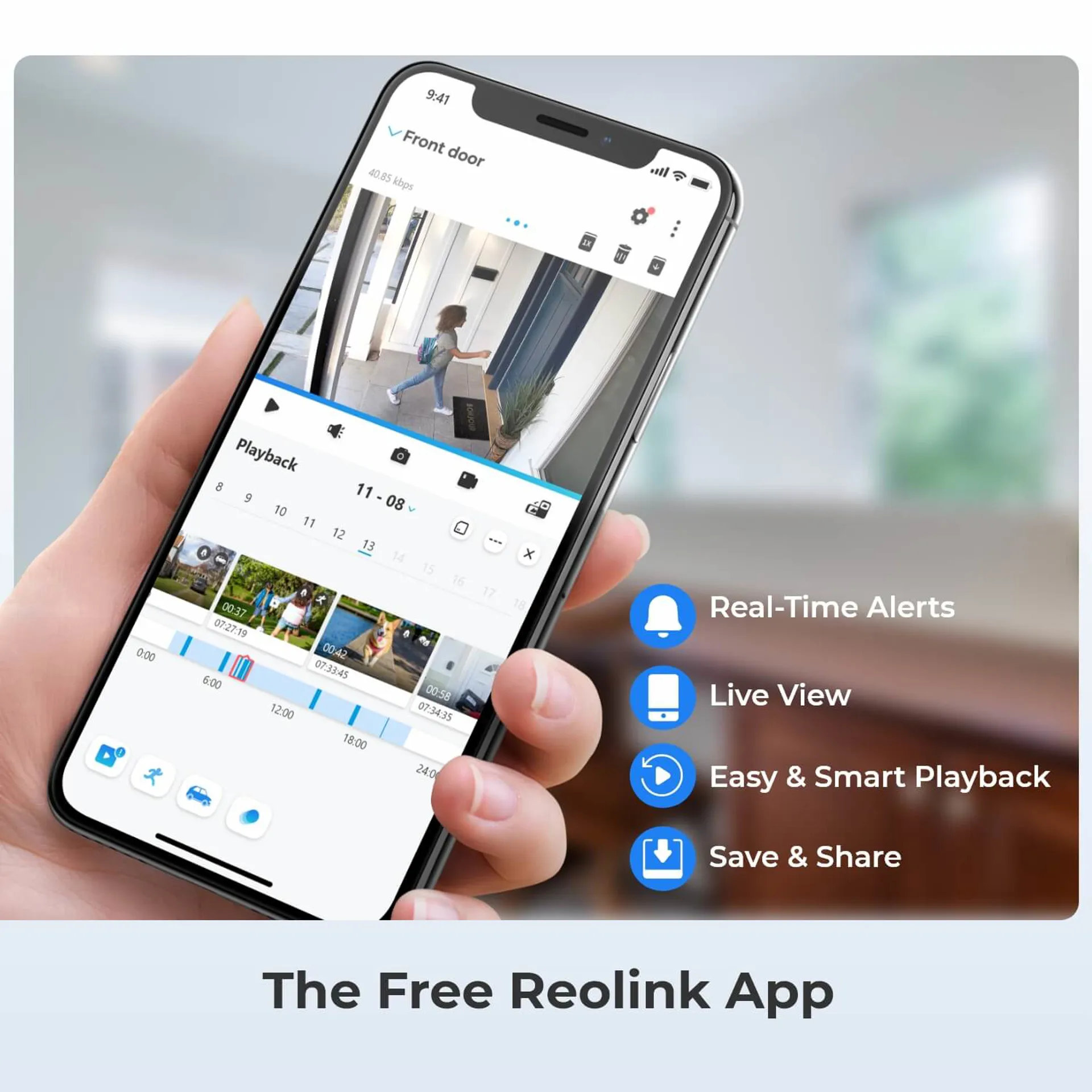

OS Supported PC: Windows, Mac OS; Smart phone: iOS, Android
Max. User Access 20 Users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10substreams&2mainstreams)
Working Environment
Temperature Operating Temperature: - 10°C~+55°C (14°F~131°F)
Humidity Operating Humidity: 10% ~ 90%

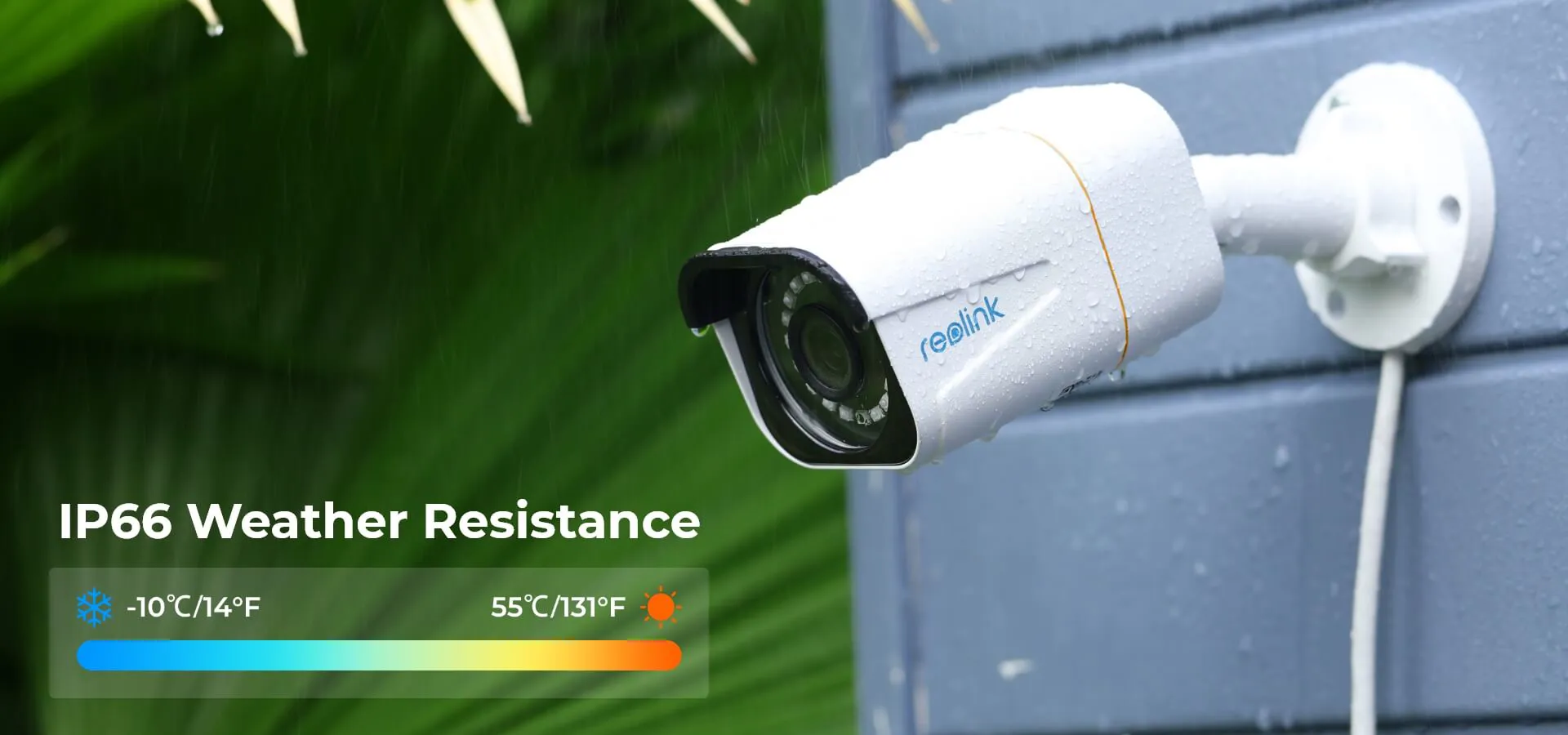

Weather Resistance IP 66
GeneralPower Supply DC 48V ~ 53V
Power Consumption <10W (without HDD & PoE)
Warranty
Limited Warranty 2-year limited warranty. For support, visit
https://support.reolink.com/hc/en-us/
